Searching for a smart DVR to complement to your CCTV system? Look no further than the UT UL-Tech 4-channel DVR. An innovative 5-in-1 1080N DVR that is packed with the latest technological features to make close circuit surveillance effective and efficient. The DVR supports a number of camera technologies including AHD, TVI, CVI CVBA and IP camera as well as P2P technology. The unit can be assessed remotely and comes with customisable motion detection for live viewing on your smartphone or desktop computer. It can also be made to send out an email alarm to your devices in the event of unauthorized entry into your home or facility. Better still, all the events can be recorded smoothly and the smart playback makes locating incident clips fast and easy. Behind the unit, there are HDMI, VGA and USB outputs for versatile connectivity and the DVR is also compatible with cloud technology. Not least, all your recorded data is safely protected when power outage occurs. Included with your purchase are all the accessories for a quick set-up with minimum hassle.
Note: This product require a Hard Drive (not included) to record the video
Features:
4 Channel 1080N 5-in-1 DVR

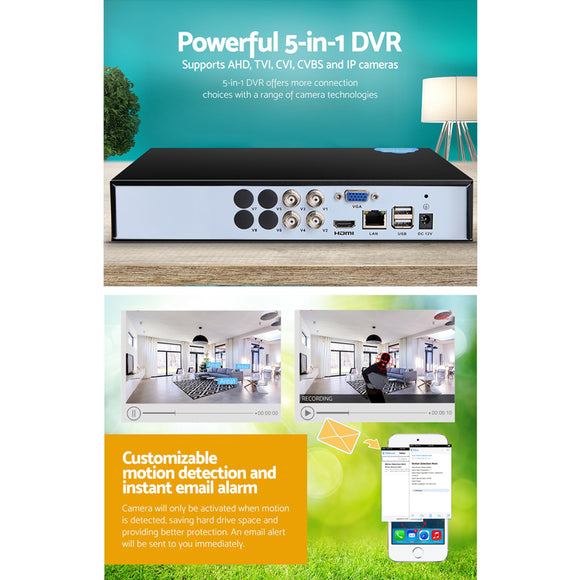

Supports AHD, TVI, CVI, CVBS and IP camera
Support P2P technology
Remote access
View on phone or computer
Customisable motion detection
Instant E-mail alarm
HDMI and VGA outputs
Support USB backup and storage
Data protection on power outage
Support 4-channel simultaneous live viewing via smart phone
Support Capture and Record in smart phone
Support Cloud System for Remote Access/Support HDMI Output
Bonus USB mouse
Specifications:
Video
Codec: H.264
Monitor quality: VGA,HDMI: HD
Preview ability: 4*1080N
Encode ability: 4*1080N@12fps
Decode ability: 4*1080N@12fps
Multi-mode input: analog: 4*1080N; 4*AHD-M; 4*AHD-L
hybrid: 4*1080N(analog)+4*960P(network)
Network only: 4*720P; 4*1080P; 8*720P; 8*1080P; 1*1080P
Motion detection:
Each screen can be set to 192 (16 * 12) detection areas;
multi-level sensitivity can be set (Limited local channel)

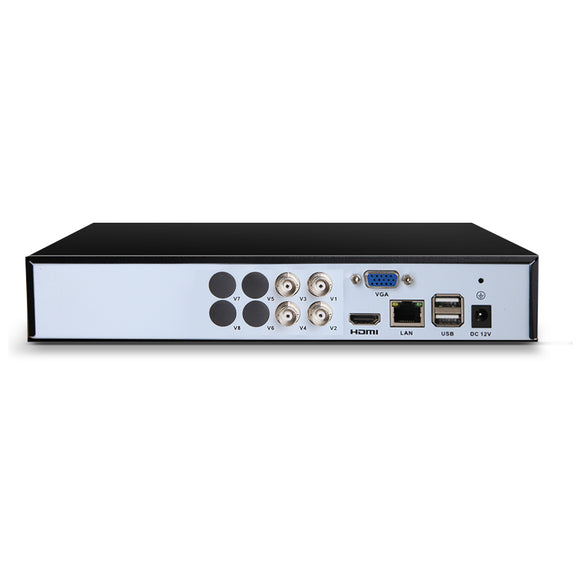

External Interface
Video input: 4ch BNC
Video output: 1ch VGA, 1ch HDMI
Loop vout: N/A
Audio I/O: 0/0
Alarm I/O: 0/0
Network interface: RJ45 10M/100M self-adaption
PTZ control: 1*RS485, Support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD : 1*SATA ports (Max 6TB/per)
General
Power supply: 12V/2A
Record and playback
Record mode: manual>alarm>motion detection>timing
Local playback: 8ch(local input mode)
Search mode: Search by time, calendar, event, channel
Storage and backup
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner

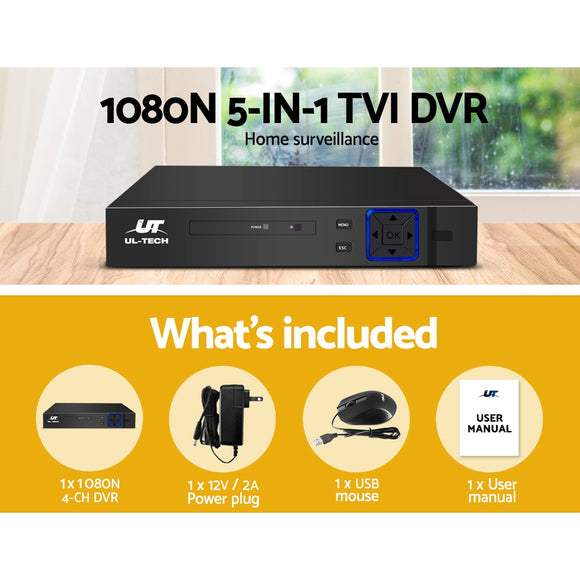

Product Contents:
1 x 1080N 4CH DVR
1 x 12V/2A power plug
1 x USB mouse
1 x Network cable
1 x Mounting screws pack
